TECHNICAL DETAILS

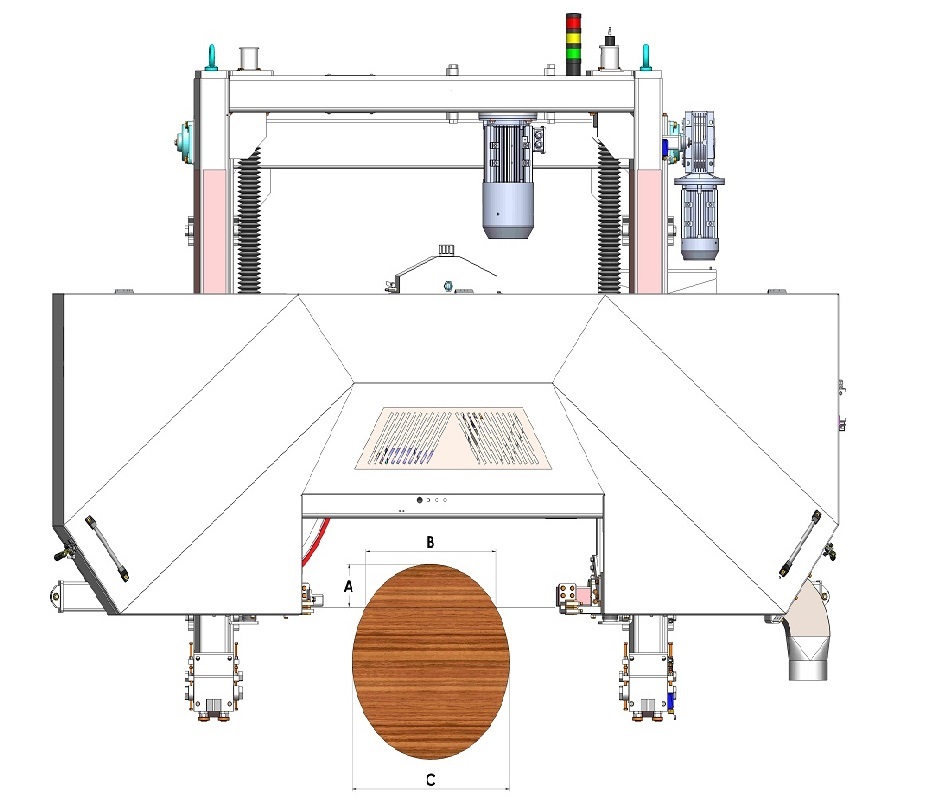

| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 360mm | 2310mm | 1200mm | 1200mm | 4000mm | 3350mm | 745mm | 2220mm |
| UHYB_120 | ||
|---|---|---|
| Width of Wheels | 135 mm | |
| Max. Lenght of Log | 5000 mm (6500 mm Option) | |
| Max. Cutting Width | 1100 mm | |
| Motor of movement of Bandsaw | 4 KW | |
| Motor for Movement of Bandsaw | 2.2 KW | |
| Sawdust | Ø 200 | |
| Main Motor | 37 kW (50 HP) – [45 kW (60 HP) Option] | |
| Weight | ~ 8840 kg |
FEATURES
- Two side hydraulic move blade guides
- Hydraulic blade tensioning, automatic tension regulation with plate springs
- Hydraulic up-down move arm for separating cut boards on to the transporter
- Digital system for machine control and encoder for height positioning, memory for measured thickness, 50 optimizing cut programs for different diameters and widths
- Joystick control with six function buttons
- Remote control operating panel
- Hydraulic system, 90° motion, hydromotor driven log rotating arms 2pcs
- Hydraulic system log support arms 3pcs
- Hydraulic system with double acting cylinder log clamping hooks 3pcs
- Pneumatic saw wheel brake system
